Front transfer seal

PostPosted: Fri Jul 11, 2014 9:14 am
by Chrisp
I had my front transfer case seal replaced on warranty after 60000 km. The pain is it has to be done at Toyota dealership, which is 300km away! So have to drive 300km there and wait for them to change the seal then drive home again. Pain!

Re: Front transfer seal

PostPosted: Fri Jul 11, 2014 12:06 pm
by Donk
Might be worth your drive. Ive had a quick glance at mine and it looks like a split the case job as I couldnt see a retaining nut. Ed also has to do his to he is the test piolet :lol:

Unlucky bout no toyotas around I reckon I could find 15 dealer ships in that distance

Re: Front transfer seal

PostPosted: Fri Jul 11, 2014 12:07 pm
by Donk
Might be worth your drive. Ive had a quick glance at mine and it looks like a split the case job as I couldnt see a retaining nut. Ed also has to do his to he is the test piolet :lol:

Unlucky bout no toyotas around I reckon I could find 15 dealer ships in that distance

Re: Front transfer seal

PostPosted: Fri Jul 11, 2014 1:50 pm
by 09splitta
I replaced mine a few months ago, have to split the transfer case, wasn't to bad tho, Toyota wanted 48$ for the seal! Got same size at bearing shop for 4$

Re: Front transfer seal

PostPosted: Sat Jul 12, 2014 12:29 pm
by Donk
Much involved in splitting a case?

Re: Front transfer seal

PostPosted: Sat Jul 12, 2014 12:43 pm
by VDJ ED
Checking now on the manual donk.

Re: Front transfer seal

PostPosted: Sat Jul 12, 2014 1:39 pm
by Donk
I assume not but will be good to know

Re: Front transfer seal

PostPosted: Sat Jul 12, 2014 2:47 pm
by Boxhead55

Re: Front transfer seal

PostPosted: Sat Jul 12, 2014 4:44 pm
by VDJ ED
cheers boxhead,

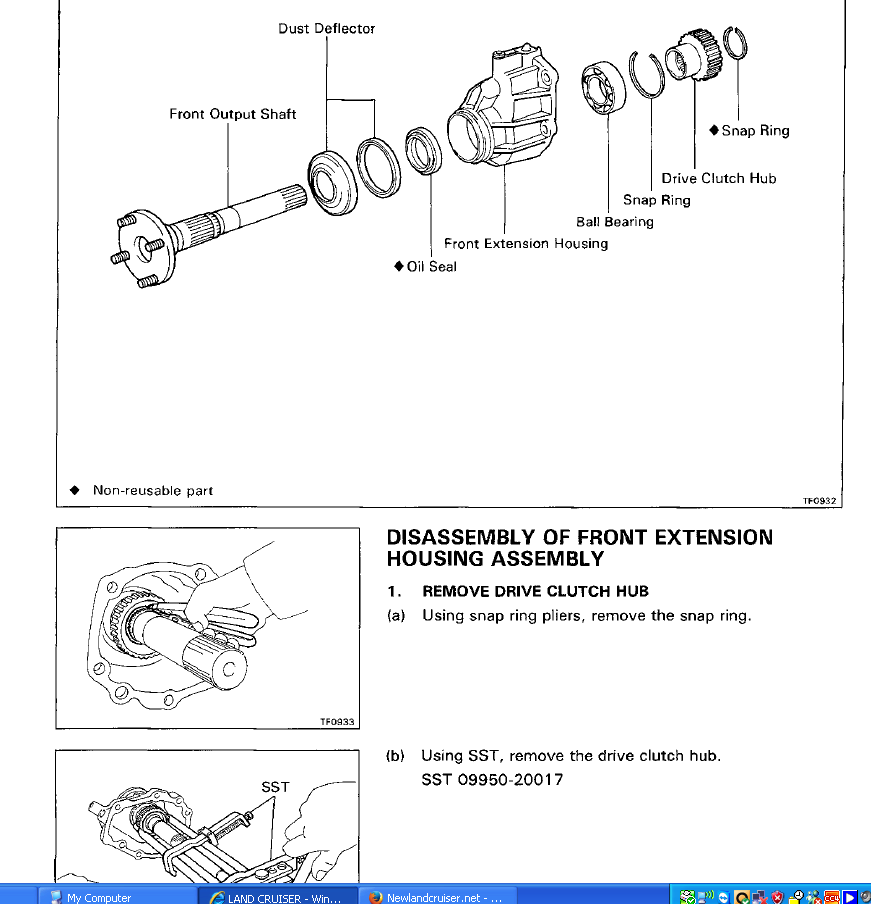

i got the procedure off the manual, will load a bunch of pics up. But will also try to upload a PDF document and i need people to tell me if it works so i can save heaps of time :)

https://drive.google.com/file/d/0BxH8JK ... sp=sharing
that link should direct you to the pdf document. **YOU WILL NEED A PDF READER*** ie adobe pdf reader (should be standard on every computer, for those that arnt tech savvy ;) )


Re: Front transfer seal

PostPosted: Sat Jul 12, 2014 4:47 pm
by VDJ ED
oh side note...

according to toyodiy.. the part numbers on the transfer assembly from a 1vd cruiser is the same as the fzj 90-98 model petrol cruiser, according to toyodiy who gets them from toyota.

Re: Front transfer seal

PostPosted: Sat Jul 12, 2014 11:07 pm
by Donk
Cheers ed and boxhead. So its only a matter of removing the front hub off the transfer?

Re: Front transfer seal

PostPosted: Sun Jul 13, 2014 4:42 am
by Boxhead55
Yep you will need a press as well

Re: Front transfer seal

PostPosted: Sun Jul 13, 2014 8:22 am
by Donk
To easy cheers

Re: Front transfer seal

PostPosted: Sun Jul 13, 2014 8:54 am
by VDJ ED
Anyone click on the link? Need to know if it works and you can read the pdf

Re: Front transfer seal

PostPosted: Sun Jul 13, 2014 9:04 am
by fraz
Can read the pdf on my phone, so no dramas there

Re: Front transfer seal

PostPosted: Sun Jul 13, 2014 9:37 am
by kyle300exc
Yes works on my lap top as well. :shock:

Re: Front transfer seal

PostPosted: Sun Jul 13, 2014 9:59 am
by Donk
Yerp works for me. Its probly far from failing but probly wont hurt to change the bearing out whilst at it

Re: Front transfer seal

PostPosted: Sun Jul 13, 2014 10:44 am
by VDJ ED
Woo cheerin cheers fellas. Will make posting things from the workshop manual a lot easier :)

Yea same donk, I'll be ordering a seal and bearing when I do mine. It's out might as well change it.

Re: Front transfer seal

PostPosted: Tue Jun 21, 2016 4:09 pm
by Donk
Familiar sight again :roll: :roll:
